Toshiba Releases Arm® Cortex®-M4 Microcontrollers for Motor Control

Logo

– Additions to M4K Group in the TXZ+™ Family Advanced Class boost code flash memory to 512KB/1MB –

KAWASAKI, Japan–(BUSINESS WIRE)–Mar. 26, 2024

Toshiba Electronic Devices & Storage Corporation (“Toshiba”) has added eight new products with 512KB/1MB flash memory capacity and four types of packages to the M4K Group of the TXZ+™ Family Advanced Class 32-bit microcontrollers equipped with Cortex^®-M4 core with FPU.

This press release features multimedia. View the full release here: https://www.businesswire.com/news/home/20240325053408/en/

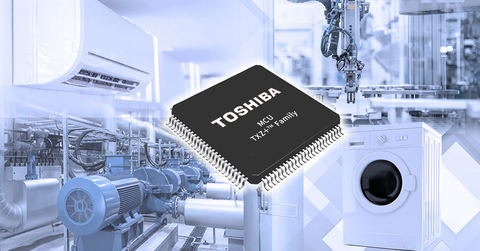

Toshiba: TXZ+™ Family Advanced Class Arm® Cortex®-M4 microcontrollers for motor control (Graphic: Business Wire)

Continuing advances in the functionality of motor applications supporting IoT is increasing demand for large program capacity and firmware over-the-air support.

The new products expand code flash memory capacity from the 256KB maximum of Toshiba’s current product to 512KB^[1]/1MB^[2], depending on the product, and RAM capacity from 24KB to 64KB. Other features, such as an Arm^® Cortex^®-M4 core running up to 160MHz, integrated code flash and 32KB data flash memory with 100K program/erase cycle endurance, have been maintained.

The microcontrollers also offer various interfaces and motor control options, such as advance-programmable motor driver (A-PMD), advanced encoder 32-bit (A-ENC32), advanced vector engine plus (A-VE+) and three units of high-speed, high-resolution 12-bit analog/digital converters. As a result, the M4K Group products contribute to wider application of IoT, and bring advanced functionality to AC motors, brushless DC motors and inverter controls.

The new products implement the 1MB code flash in two separate 512KB areas. This realizes firmware rotation with the memory swap method^[3], allowing instructions to be read from one area while updated code is programmed into the other area in parallel.

Devices in the M4K Group have UART, TSPI and I²C integrated as general communications interfaces. Self-diagnosis functions incorporated in the devices for flash memory, RAM, ADC and Clock help customers to achieve IEC 60730 Class B functional safety certification.

Documentation, sample software with actual use examples, and driver software that controls the interfaces for each peripheral are available. Evaluation boards and development environments are provided in cooperation with Arm^® global ecosystem partners.

Toshiba is planning to increase capacity of flash memory also for M4M Group with CAN interface.

Notes:

[1] Code flash memory capacity of TMPM4KxFDAxxG is 512KB with one area.

[2] Code flash memory capacity of TMPM4KxF10AxxG is 1MB, made up of two 512KB areas.

[3] TMPM4KxFDAxxG does not support this function.

Applications

Motors and inverter control of consumer products, industrial equipment
IoT of consumer products, industrial equipment, etc.

Features

High-performance Cortex^®-M4 core with FPU, max 160MHz
Increased capacity of internal memory
Code flash memory: 512KB/1MB

RAM: 64KB
Memory swap method firmware rotation function, supporting firmware updates while the microcontroller continues to operate^[4]
Self-diagnosis functions for IEC 60730 class B functional safety
Four types of packages

Main Specifications
Product group		M4K Group
Part number^[5]		TMPM4KNF10AFG TMPM4KNFDAFG	TMPM4KLF10AUG TMPM4KLFDAUG
		TMPM4KNF10ADFG TMPM4KNFDADFG	TMPM4KLF10AFG TMPM4KLFDAFG
CPU core		Arm^® Cortex^®-M4 ‒ floating point unit (FPU) ‒ memory protection unit (MPU)
Maximum operating frequency		160MHz
Internal oscillator	Oscillation frequency	10MHz (±1%)
Internal memory	Flash (code)	1024KB/512KB^[5] (Program/erase cycles: up to 100,000 times) Memory swap method firmware rotation function with two separate code flash areas of 512KB each^[4]
	Flash (data)	32KB (Program/erase cycles: up to 100,000 times)
	RAM	64KB, with parity
I/O port		87 pin	51 pin
External interrupt		20 factors, 32 pin	15 factors, 20 pin
DMA controller (DMAC)		32 channels	30 channels
Timer function	32-bit Timer Event Counter (T32A)	6 channels (12 channels if used as 16-bit timer)
Communication function	UART	4 channels	3 channels
	I²C/EI²C interface (I2C/EI2C)	2 channels
	TSPI	2 channels
Analog function	12-bit AD converter (ADC)	11/5/6 inputs in 3 units	8/3/3 inputs in 3 units
	Operational Amplifier (OPAMP)	3 units
Motor control circuits	Advanced Programmable Motor Control Circuit (A-PMD)	3 channels	3 channels^[6]
	Advanced Vector Engine Plus (A-VE+)	1 channel
	Advanced Encoder Input Circuit (32-bit) (A-ENC32)	3 channels	1 channel
	CRC Calculation Circuit (CRC)	1 channel, CRC32, CRC16
System function	Watchdog Timer (SIWDT)	1 channel
	Voltage Detection Circuit (LVD)	1 channel
	Oscillation Frequency Detector (OFD)	1 channel
On Chip Debug function		JTAG / SW TRACE(4bits) NBDIF	SW
Operating voltage		2.7 to 5.5V, single voltage supply 4.5 to 5.5 V (All functions), 2.7 to 4.5 V (Without OPAMP, ADC)
Package / Pin		LQFP100 (14mm x 14mm, 0.5mm pitch)	LQFP64 (10mm x 10mm, 0.5mm pitch)
		QFP100 (14mm x 20mm, 0.65mm pitch)	LQFP64 (14mm x 14mm, 0.8mm pitch)

Notes:

[4] For products with code flash memory of 1MB(1024KB) only.

[5] “F10” in the part number indicates 1024KB of code flash memory and “FD” indicates 512KB.

[6] TMPM4KLFxxAxxG has no OVVx pin.

Follow the link below for more on the M4K Group.

M4K Group

Follow the link below for more on Toshiba’s Microcontrollers.

Microcontrollers

* Arm and Cortex are registered trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere.

* TXZ+™ is a trademark of Toshiba Electronic Devices & Storage Corporation.

* Other company names, product names, and service names may be trademarks of their respective companies.

* Information in this document, including product prices and specifications, content of services and contact information, is current on the date of the announcement but is subject to change without prior notice.
